Description

APEX POWER Sealed Maintenance-free auto batteries are designed to reduce water loss for longer service life, this series are sealed and activated when export and no need maintenance in whole life with very good low temperature starting ability, super long shelf life and maintenance free under normal situation. Those batteries are manufactured under JIS technology standard, less electrolyte is consumed, good anti-vibration capacity.

>>>>>Advanced Features

1. MAGIC-EYE INDICATOR OR HYDROMETER: Green, white and red color indicates clearly different car battery charging state.

2. COS PLATE WELDING: Low car battery defective rate, high cranking capacity and good anti-vibrating performance.

3. ADVANCED HEAT-SEAL: Technology to maximize seal strength and prevent the car batteries from electrolyte leakage.

4. ENVELOP TYPE PE SEPATATOR: Low electric resistance, light weight, strong movement of ions in vitriol solution, thus increase the car battery voltage and starting current to enable the battery keep good volume and stable condition.

5. ANTI-VIBRATING BRACKET: Protect the car batteries from vibrating and impact.

6. HIGH PERFORMANCE LEAD-CALCIUM PLATES: To enable the car batteries with low water loss , minimized self-discharge rate and improved life cycle.

7. LEAD CALCIUM AND TIN PLATE GRIDS: To keep the car batteries anti-oxidization, anti-corrosion, less water loss, low self-discharge and superior performance.

Application

● Applicable for automotive, tractor, startup of mining and construction vehicle, lighting and ignition.

● Applicable for startup and ignition of all gasoline and diesel engine.

● Applicable for power supply of the electric equipment on automotive, tractor , mining and construction vehicle, traction vehicle.

Technical Specification

APEX POWER	JIS	Type	Type	Voltage	Capacity			CCA	Size (mm)				Terminal
NO.	GR. NO.	(New)	(Old)	(V)	20hr(Ah)	5hr(Ah)	min	(-18℃)	L	W	H	T.H.	Lay-out	Type
AP001	B20	36B20LS	NS40ZLSMF	12	35	28	52	320	196	128	200	220	0	A
AP002		36B20RS	NS40ZSMF	12	35	28	52	320	196	128	200	220	1	A
AP003		36B20L	NS40ZLMF	12	35	28	52	320	196	128	200	220	0	B
AP004		36B20R	NS40ZMF	12	35	28	52	320	196	128	200	220	1	B
AP005	B24	32C24L	N40LMF	12	40	32	57	350	237	127	200	220	0	A
AP006		32C24R	N40MF	12	40	32	57	350	237	127	200	220	1	A
AP007		46B24LS	NS60LSMF	12	45	36	71	350	237	127	200	220	0	A
AP008		46B24RS	NS60SMF	12	45	36	71	350	237	127	200	220	1	A
AP009		46B24L	NS60LSMF	12	45	36	71	350	237	127	200	220	0	B
AP010		46B24R	NS60MF	12	45	36	71	350	237	127	200	220	1	B
AP011		55B24LS	55B25LSMF	12	45	36	71	350	237	127	200	220	0	A
AP012		55B24RS	55B25RSMF	12	45	36	71	350	237	127	200	220	1	A
AP013		55B24L	55B25LMF	12	45	36	71	350	237	127	200	220	0	B
AP014		55B24R	55B25RMF	12	45	36	71	350	237	127	200	220	1	B
AP015	D23	55D23L	55D24LMF	12	60	48	99	450	226	170	200	220	0	A
AP016		55D23R	55D24RF	12	60	48	99	450	226	170	200	220	1	A
AP017		75D23L	75D24LMF	12	65	52	118	500	226	170	200	220	0	A
AP018		75D23R	75D24RMF	12	65	52	118	500	226	170	200	220	1	A
AP019	D26	48D26R	N50F	12	50	40	78	400	260	170	201	225	1	A
AP020		48D26L	N50LF	12	50	40	78	400	260	170	201	225	0	A
AP021		55D26R	N50ZMF	12	60	48	101	460	260	170	201	225	1	A
AP022		55D26L	N50ZLMF	12	60	48	101	460	260	170	201	225	0	A
AP023		65D26R	NS70MF	12	65	52	113	540	260	170	201	225	1	A
AP024		65D26L	NS70LMF	12	65	52	113	540	260	170	201	225	0	A
AP025	D31	65D31R	N70MF	12	70	56	126	460	305	172	201	225	1	A
AP026		65D31L	N70MF	12	70	56	126	460	305	172	201	225	0	A
AP027		75D31R	N70ZMF	12	75	60	137	540	305	172	201	225	1	A
AP028		75D31L	N70ZLMF	12	75	60	137	540	305	172	201	225	0	A
AP029		95D31R	NX120-7MF	12	80	64	159	640	305	172	201	225	1	A
AP030		95D31L	NX120-7L	12	80	64	159	640	305	172	201	225	0	A
AP031	E41	95E41R	N100MF	12	100	80	182	700	405	172	205	228	1	A
AP032		95E41L	N100LMF	12	100	80	182	700	405	172	205	228	0	A
AP033		105E41R	N100ZMF	12	104	83	190	750	405	172	205	228	1	A
AP034		105E41L	N100ZLMF	12	104	83	190	750	405	172	205	228	0	A
AP035		115E41R	NS120MF	12	110	88	200	800	405	172	205	228	1	A
AP036		115E41L	NS120LMF	12	110	88	200	800	405	172	205	228	0	A
AP037	F51	115F51	N120MF	12	120	96	225	840	505	180	210	235	4	A
AP038	F51	145F51	NS150MF	12	140	112	269	900	505	180	210	235	4	A
AP039	G51	145G51	N150MF	12	150	120	292	950	505	220	210	235	4	A
AP040	G51	165G51	NS200MF	12	170	136	338	1050	505	220	210	235	3	A
AP041	H52	190H52	N200MF	12	200	160	409	1100	505	265	210	235	4	A
Note:
1. Specifications above are subject to change without further notice, please contact us for kind check.
2. Some more models may not be listed, please contact our salesperson for more.
3. If more details required, please feel free to mail, call or chat via online mobile/whatsapp/wechat.

Description

Application

Technical Specification

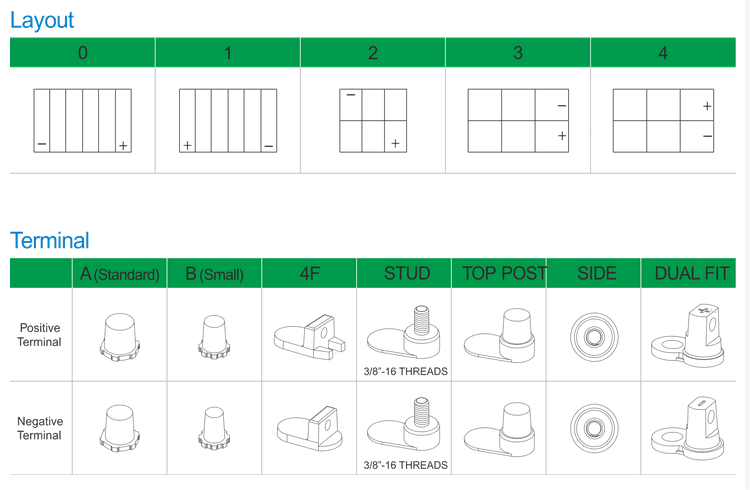

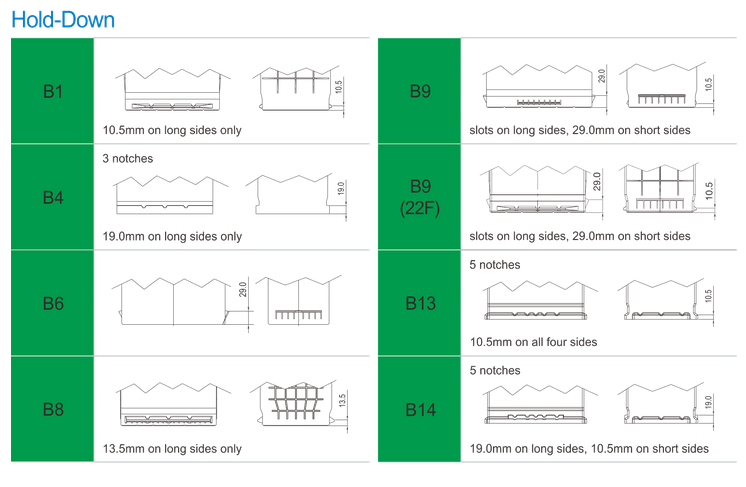

Layout&Terminal&Hold-Down
