APEX POWER APD (Deep Cycle) Series AGM batteries are ideal for applications that require heavy-duty cycling capabilities long backup power, typically features thick plates with a high-density active material. The thick battery Plates allow for reserve energy to be stored deep within the battery plate and released during slow discharge such as trolling or electronic instrument use. They are typically applied when discharged to great extent and then recharged frequently.
Battery Type : deep cycle
Design life : 8-10 years
Voltage: 6V/8V/12V
Capacity: 20-420AH.
>>>>> Advanced Feature
● High Power Density
● Thick Plates and High-density
● Superior Deep Cycle Design
● High Power Density
● Thick Plates and High-density Active Material
● Excellent energy storage capacity combined with high reliability
● Designed in accordance with IEC 60254-1
● 700 Cycles at 75% DOD
● Golf car, wheeler, electric vehicle
● Solar energy/ wind power system
● electrical tools
● other power drive equipment, etc
● Golf/NEV/Utility Vehicles
● Aerial Work Platforms/Access
● Floor Machine
|
Apex Power Model No. |
Nominal |
Capacity |
Dimension(±1mm) |
Weight (Approx.) |

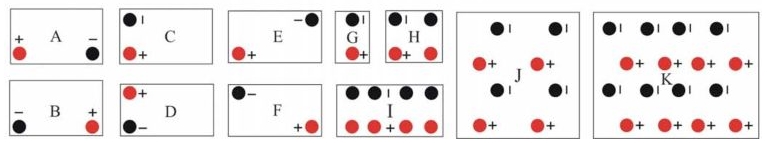

Terminal |
||||||||
|
Length |
Width |
Height |
Total Height |
||||||||||
|
(V) |
(AH) |
mm |
in |
mm |
in |
mm |
in |
mm |
in |
kg |
pound |
||
|
APD12-6 |
6 |
12 |
151 |
5.94 |
50 |
1.97 |
94 |
3.7 |
100 |
3.94 |
1.7 |
3.75 |
F2 |
|
APD14-6 |
6 |
14 |
108 |
4.25 |
71 |
2.79 |
140 |
5.51 |
140 |
5.51 |
2.3 |
5.07 |
F1/F2 |
|
APD100-6 |
6 |
100 |
195 |
7.68 |
170 |
6.69 |
207 |
8.15 |
213 |
8.39 |
16.5 |
36.4 |
F12 |
|
APD150-6 |
6 |
150 |
260 |
10.2 |
180 |
7.09 |
247 |
9.72 |
251 |
9.88 |
23.5 |
51.8 |
F10 |
|
APD180-6 |
6 |
180 |
306 |
12 |
168 |
6.61 |
220 |
8.66 |
226 |
8.9 |
26.8 |
59.1 |
F12 |
|
APD200-6 |
6 |
200 |
306 |
12 |
168 |
6.61 |
220 |
8.66 |
226 |
8.9 |
28.3 |
62.4 |
F12 |
|
APD220-6 |
6 |
220 |
260 |
10.2 |
180 |
7.09 |
247 |
9.72 |
251 |
9.88 |
31 |
68.3 |
F10 |
|
APD225-6 |
6 |
225 |
320 |
12.6 |
176 |
6.93 |
225 |
8.86 |
229 |
9.02 |
32 |
70.5 |
F12 |
|
APD300-6 |
6 |
300 |
295 |
11.6 |
178 |
7.01 |
345 |
13.6 |
365 |
14.37 |
48 |
105.8 |
F12 |
|
APD150-8 |
8 |
150 |
260 |
10.2 |
182 |
7.17 |
295 |
11.6 |
299 |
11.8 |
29.5 |
65 |
F12 |
|
APD24-12 |
12 |
24 |
166 |
6.54 |
175 |
6.89 |
125 |
4.92 |
125 |
4.92 |
7.6 |
16.8 |
F4 |
|
APD28-12 |
12 |
28 |
166 |
6.54 |
175 |
6.89 |
125 |
4.92 |
125 |
4.92 |
8.3 |
18.3 |
F4 |
|
APD33-12 |
12 |
33 |
195 |
7.68 |
130 |
5.12 |
155 |
6.1 |
168 |
6.61 |
10.2 |
22.5 |
F11 |
|
APD40-12 |
12 |
40 |
197 |
7.76 |
165 |
6.5 |
170 |
6.69 |
170 |
6.69 |
12.8 |
28.2 |
F11 |
|
APD45-12 |
12 |
45 |
197 |
7.76 |
165 |
6.5 |
170 |
6.69 |
170 |
6.69 |
13.5 |
29.7 |
F11 |
|
APD50-12 |
12 |
50 |
250 |
9.84 |
160 |
6.3 |
178 |
7.01 |
197 |
7.76 |
15.8 |
34.84 |
F5 |
|
APD55-12 |
12 |
55 |
239 |
9.41 |
132 |
5.2 |
205 |
8.07 |
210 |
8.27 |
16.6 |
36.6 |
F11 |
|
APD65-12 |
12 |
65 |
350 |
13.8 |
167 |
6.57 |
179 |
7.05 |
179 |
7.05 |
21.5 |
47.4 |
F11 |
|
APD75-12 |
12 |
75 |
260 |
10.24 |
169 |
6.65 |
208 |
8.19 |
212 |
8.35 |
21.5 |
47.4 |
F21 |
|
APD80-12 |
12 |
80 |
350 |
13.78 |
167 |
6.57 |
179 |
7.05 |
179 |
7.05 |
23.5 |
51.7 |
F11 |
|
APD90-12 |
12 |
90 |
306 |
12.05 |
169 |
6.65 |
208 |
8.19 |
212 |
8.35 |
27.5 |
60.6 |
F21 |
|
APD100-12 |
12 |
100 |
328 |
12.92 |
171 |
6.74 |
214 |
8.43 |
218 |
8.59 |
30.5 |
67.2 |
F12 |
|
APD120-12 |
12 |
120 |
410 |
16.14 |
176 |
6.93 |
227 |
8.94 |
227 |
8.94 |
35.5 |
78.24 |
F12 |
|
APD134-12 |
12 |
134 |
341 |
13.4 |
173 |
6.81 |
283 |
11.1 |
288 |
11.3 |
40 |
88.2 |
F12 |
|
APD150-12 |
12 |
150 |
482 |
19 |
170 |
6.69 |
242 |
9.53 |
242 |
9.53 |
44.5 |
98.1 |
F12 |
|
APD180-12 |
12 |
180 |
522 |
20.55 |
238 |
9.37 |
218 |
8.58 |
222 |
8.74 |
55.5 |
122.3 |
F12 |
|
APD200-12 |
12 |
200 |
522 |
20.6 |
238 |
9.37 |
218 |
8.58 |
222 |
8.74 |
60 |
132.2 |
F12 |
|
APD225-12 |
12 |
225 |
522 |
20.6 |
238 |
9.37 |
218 |
8.58 |
222 |
8.74 |
63 |
138.9 |
F12 |
|
APD250-12 |
12 |
250 |
520 |
20.5 |
269 |
10.6 |
220 |
8.6 |
224 |
8.82 |
69.5 |
153.2 |
F12 |
|
Note: Specifications above are subject to change without further notice, please contact us for kind check. |
|||||||||||||
